LUCE & LIGHT

Surface-mounted LED luminaire with direct beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 30W – Low Power; Dimensions of the profile channel (LxWxH): 2531mm x 50mm x 80.5mm; luminaire's weight is approximately 5200g; CCT 3000K with a System Luminous Flux of 3202lm; decent color rendering at an index of CRI>80; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) clear with microprismatic plate inserted for lower luminance (UGR<19); degree of housing protection IP20; RG<1 (EN62471); protection class I

The LS411COB uses 'Chip on Board' technology to deliver powerful illumination and efficiency in one compact package. The high lumen density, combined with the traditional 'lamp and reflector' optics makes the LS411COB ideal for applications requiring wider distribution such as landscape lighting or other applications where sharp cutoff is not desired. Featuring a wide range of colour temperatures and optical / shielding combinations, the LS411COB retains the versatility of its discrete LED predecessor whilst dramatically boosting delivered lumens.

Logic W exists out of small and large wall luminaires to be installed slightly above ground level. As such, they provide a soft glow on the floor to guide you along patheways or in corridors, both in- andoutdoors.

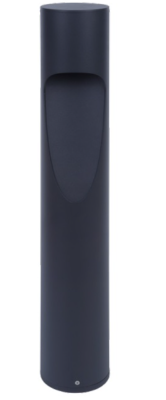

Radial diffusion bollard & pole for outdoor application. The warm white LED light source with a asymmetric 360° light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a grey ral 7021 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65;
