Products

ELR

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

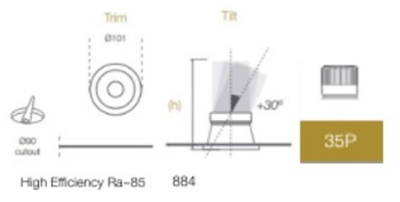

VASARI 3_30P_ADJROUND_2700K

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications

Specification

Power
10W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
884LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 85
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 4 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 76 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; LED 11W; measurement Ø71mm; ceiling cutout of Ø75mm with a trimless mounting; luminaire's weight is approximately 220g; rotation 355° and pivot max. 30°; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20)
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission recessed downlights for indoor application. The super warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.
LUCI
LED STRIP
INDOOR LIGHTING

Updated with low lumen high wattage LED series. Increased 270% efficacy, Max. 160lm/W. Customisable up to 1.5M. Flexible strip with bending sideways suitable for curved application. Cuttable every 7 LEDs (50mm). Available with 0-10V/1-10V, DMX, DALI, PWM, and Casambi control.
