LINEALIGHT

DR7 3000K LED (35W for light source) standard trim recessed luminaire with 50° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 220-240V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 175° movement through the pan axis and •+/-35° through the tilt axis, at a resolution of less than 1° in either axis.

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.

Spotlight designed to use LED lamps and a Medium optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation and sealing. The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. 5 mm thick tempered sodium-calcium closing glass. Double adjustability allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. Complete with a monochrome LED circuit and an Opti Beam Reflector optic system.

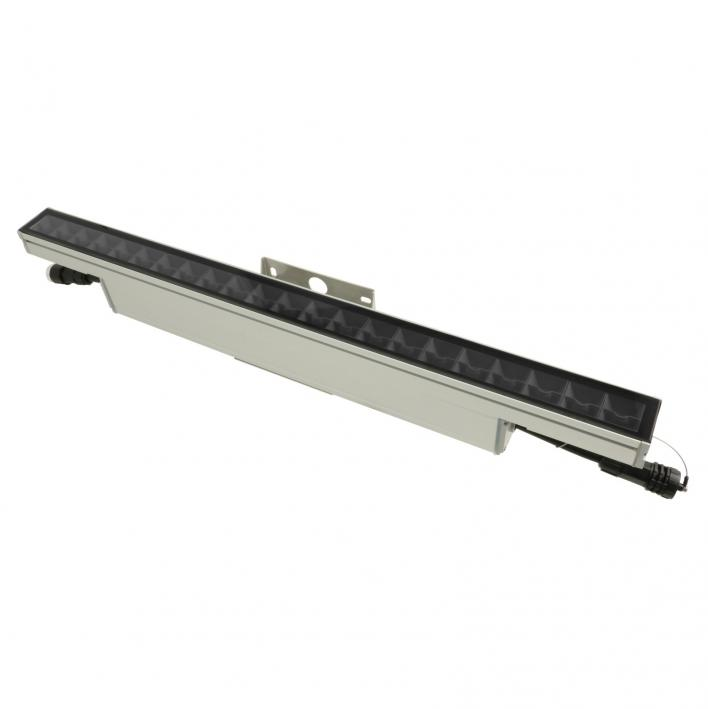

Single emission systems, lines or lines for indoor application. The warm white LED light source is composed of 156 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1470 lm, with a 122.5 lm/W nominal luminous efficacy.

The device body is made of aluminium alloy 6060 and features a white ral 9003 embossed finish, processed by means of polyester powder coating (qualicoat). The ingress protection degree is IP40.
