LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

SUB_R 97315N15

Single emission submerged for outdoor application. The natural white LED light source with a spot light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 213 lm, with a 142.0 lm/W nominal luminous efficacy. The device body is made of aisi 316l steel and features a steel finish, processed by means of shot peening. The ingress protection degree is IP68; the total weight is of 0.168 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 1.5 W. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted with an outer casing, code 98060(for concrete or masonry).IP68.

Specification

Power

LED 1.5W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

171 LM

Finishing

STAINLESS STEEL

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

SPARK

SURFACE LINEAR LIGHT

INDOOR LIGHTING

This luminaire is designed to use for office building, schools, storage areas, hospitals, and other working areas where is required highly uniformity illumination, etc.

LIGHTFORMS

RECESSED DOWNLIGHT

INDOOR LIGHTING

This ceiling recessed downlight is highly functional, with a 360° rotate and 45° tilt. This allows for more adjustment at higher angles needed to illuminate a space at higher level. High lumen output capability and available in various finishes and colour temperatures, this light fitting is perfect for retail, workplace and hospitality lighting schemes.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.192 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard) with an outer casing, code 99849 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

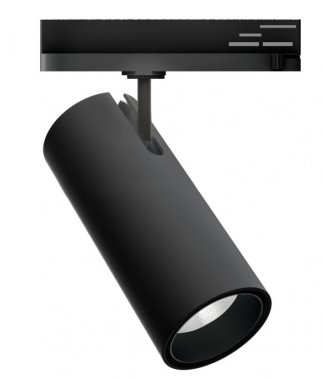

LINEALIGHT
