ELR

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
CASTER2_25D

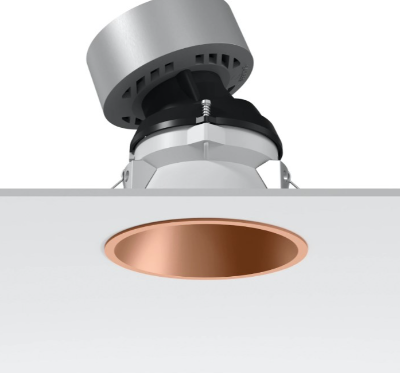

A series of pinhole downlights with reflector available in various sizes and finishing, designed with a deep aperture for optimum glare control. The Castor downlight is equipped with an off-set tilt mechanism that maximises light output for most demanding applications.

Specification

Power
8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
574LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 85
Driver
ON/OFF DRIVER

See more

LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs with CCT of 3000 K and a CRI 92; the source luminous flux is 3917 lm, with a 120.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 1 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 32.5 W. The power supply cable is included and features a 0.11 m length. The device features protection class III and can be ceiling-mounted, with a 432 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
SPOTLIGHT
OUTDOOR LIGHTING
Single emission projectors for outdoor application. The warm white LED light source with a adjustable focus light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP67,IK10.
LINEALIGHT
SURFACE MOUNTED DOWNLIGHT
OUTDOOR LIGHTING

Outdoor surface downlights come with warm white LED light source with a wide flood light distribution and composed of 1 array led. Luminaire body is made of die-cast aluminium EN AB - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass with a silk screening treatment. IP65, IK08

FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.
