MEYER

INGROUND UPLIGHT
OUTDOOR LIGHTING
UPLIGHT 280_8 661 019 019

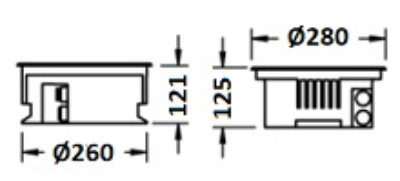

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint. Silicon gasket, cover frame and closure with 6 stainless steel screws. DIMENSIONS: Ø 280 mm, width 121 mm.

Specification

Power
23W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
731LM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.8 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 210 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

H Beam is a compact and streamlined, suspended or wall mount fixture. The extruded aluminium channel provides both direct and indirect illumination. Integral driver configuration with flush lens. Individual or continuous row mounting. A low UGR option is available with a prismatic lens.

SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in mirror chrome, white and black color. Cut-out Ø150mm. For indoor use. IP20.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.
