XAL

SURFACE LINEAR LIGHT

INDOOR LIGHTING

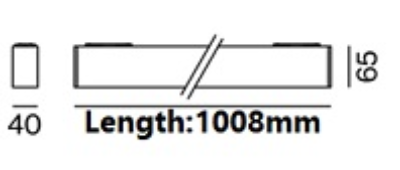

MINO 40 HIGH LUMEN_042-1122038H

Surface luminaire housing from extruded aluminium profile, angular design, no visible screws, surface powder coated in white, grey or black. Luminaire profile with pre-assembled converter unit can be pre-mounted. light inset can be installed without tools. light inset made from extruded profile for improved thermal management. (reflector version). HPO (High Performance Opal) cover uniform illumination. or micro prismatic DALI-2 converter.

Specification

Power

18.5W/M

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2260LM/M

Finishing

BLACK COLOR

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

WE-EF

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Luminaire can be mounted for up or down lighting. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.

ACCLAIM

FLOODLIGHT

OUTDOOR LIGHTING

Dyna Drum SO SCS is a high output, outdoor rated, color-changing LED floodlight. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. It comes with a narrow 8º beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.

FORMALIGHTING

TRACKLIGHT

INDOOR LIGHTING

TicTok main voltage track enables users to create unique lighting schemes and configurations. Energy-saving, track mounted on a main voltage 3-phase track system, with an integrated driver in the track adaptor - the focus is on eco-friendly design and modularity. A ready-to-use solution for greater flexibility, energy efficiency, and sustainability. TicTok is an excellent and flexible accent lighting solution for restaurants, residential spaces, retail and galleries. TicTok main voltage track is available for Ø45, Ø58 and Ø75 spot heads, with versatile aiming angle tiltable 0°-70° and rotatable 360°. TicTok is available with Casambi or DALI control options.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.277 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 70 mm diameter hole (in plasterboard) with an outer casing, code 83064 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
