IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

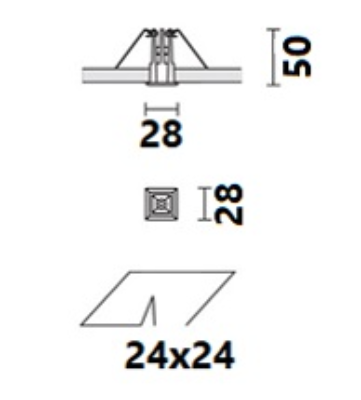

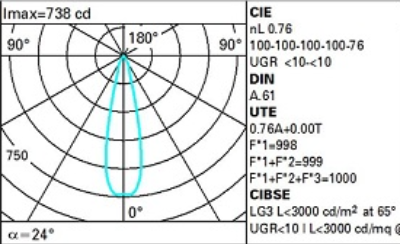

LASER BLADE XS_RA61_3000K-24°

Square miniaturised recessed luminaire for a single LED lamp - fixed optic. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Main body with die-cast zamak radiant surface, version with perimeter surface frame.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

160LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

MEYER

WALL LIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, with partial frosting for uniform light diffraction and dark silk‑print, silicon gasket, closure with 4 stainless steel screws, wall bracket: 2 drilled holes Ø 7 mm, spacing 35 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 12°, luminous flux: 2539 lm, wattage: 28 W, delivered lumens 91 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,032 m², dimensions (L×H×W): 472 × 50 × 62 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 78 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 8190 lm, with a 136.5 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP20; the total weight is of 11.32 kg. The device features protection class I and can be ceiling-mounted, with a 655 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

The MoonBand collection of suspended and surface-mount rings is the larger-form, big brother to our popular MoonRing family of luminaires. MoonBand 60 — the mid-width member of the series — is available in five diameters with four standard outputs plus RGB+W and offers the choice of direct, indirect or direct/ indirect distribution. Drivers are integral.

SPARK

LINEAR DOWNLIGHT

INDOOR LIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.
