LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

76037M30

Single emission uplights for outdoor application. The super warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68; The power supply driver is not provided and is to be ordered separately. The total absorbed power is 3 W. The power supply cable is included and features a 1 m length. The device features protection class III and can be floor-mounted with an outer casing, code 84935(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

280LM

Finishing

STEEL

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

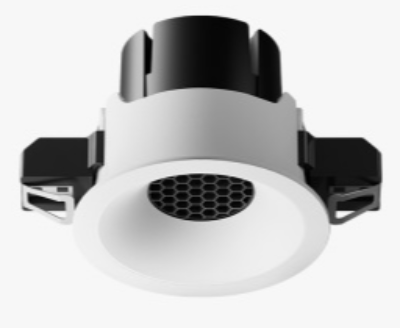

Single emission recessed downlights for indoor application. The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish;the diffuser is made of uv resistant polycarbonate. The ingress protectiondegree is IP20.

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.

MEYER

POLE LIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), 80, Beam angle (fwhm): 14°, luminous flux: 1544 lm, wattage: 55 W, delivered lumens 28 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

UNIOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Available in 4 sizes, an extensive range of accessories and 15,000+ customisations, the ION R Downlight is an outstanding contender for all lighting needs. With 2 models, Standard and Wallwasher, the ION R Downlight can be specified for both horizontal and vertical lighting needs.
