FORMALIGHTING

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

SOLO SQUARE - TRIM_ RQ99MC36-903032D010

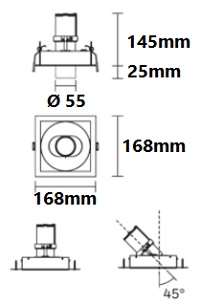

The Solo Square Series recessed spotlight body in cast aluminum, is available in 2 sizes Solo Square 168 x 168mm and Solo S 112 x 112mm trim and trimless versions. The unique pull-down mechanism enables Solo to function as either a downlight, a regressed accent light, or an exposed lamp head able to emulate a surface or track fixture. The light head of Solo Square is fully adjustable with vertical tilt up to 45° and 40° for Solo S square; and rotatable horizontally up to 360°.

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1463LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

RGBW Colour Changer. Stainless steel construction including PCS hardware. Safety glass lens. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. LED circuit board with WEEF Colour Boost Technology. DMX Interface.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 210 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 4.3 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 912 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

UNILAMP

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
