FORMALIGHTING

RECESSED DOWNLIGHT
INDOOR LIGHTING
ZERO 40 IN & OUT RECESSED_ RO42BC31-903016D010

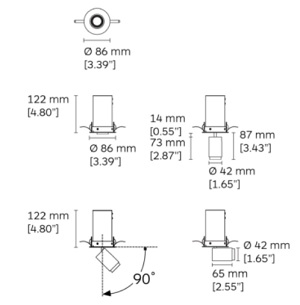

Recessed luminaire with round mounting trim in cast aluminium with springs for trim installation on a ceiling thickness of 1-25mm. Zero In & Out is available in Dia 40 or 66mm. The fully retractable light head is tillable up to 90° and rotatable horizontally 355°. Its unique pull-down mechanism, enables it to function as either a downlight or an exposed lamp able to emulate a surface or track fixture. Bean angle avaiable 16°, 23° and 36°.

Specification

Power
7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
538LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

TRAXON
LINEAR LIGHT
OUTDOOR LIGHTING


CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 322 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 3000 lm, with a 103.4 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 78 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 8190 lm, with a 136.5 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP20; the total weight is of 11.32 kg. The device features protection class I and can be ceiling-mounted, with a 655 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
