FORMALIGHTING

WALLWASHER

INDOOR LIGHTING

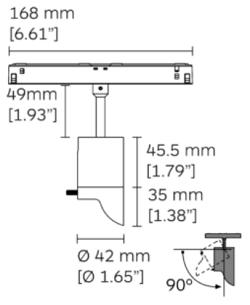

ZERO COMPASSO 42 WW_96E5BR21-9030WWD010

EVO track mounted Zero Compasso wallwasher, available in three sizes (Ø42, Ø66 and Ø100mm) versatile aiming angle tiltable vertically 0°-90° and rotatable horizontally 360°. Available in regular and long arm versions for deep recessed and pendant EVO track. Perfect for museums and galleries applications. Wallwashing with high uniformity can be used to illuminate artwork and sculptures. Vertical uniformity creates a wide and distinguished spatial impression by brightening the entire height of the wall. DALI dimmable fixtures can also be controlled by Casambi DALI Broadcast device.

Specification

Power

4.7W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

324LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

IGUZZINI

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

Direct light linear luminaire with Warm White multi-LED circuit. Made of extruded aluminum with die-cast end caps, silicone seals, UV- and weather-resistant acrylic coating, and a 5 mm glass screen. Mountable on ceiling, wall, ground, or pendant systems (accessories sold separately). Features pass-through wiring with IP68 connectors, Opti Beam Lens with Wall Grazing Wide Flood optic, and stainless steel screws. Control cards (DMX/DALI) and power supply to be ordered separately.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

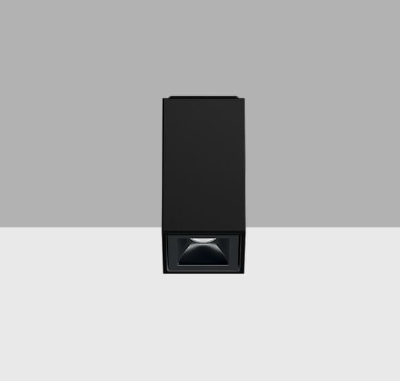

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.

MEYER

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, luminaire fixed using stainless steel spring loaded clamps, clamping range in hollow ceilings 12‑42 mm, aperture for installation Ø 125 mm, connecting terminal: 3 pole, highly efficient faceted and coated rotationally symmetrical reflector, 1 m cable, remote driver required, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 20°, luminous flux: 1857 lm, wattage: 19 W, delivered lumens 96 lm/W, protection type IP65, protection class III, impact resistance IK08, dimensions: Ø 138 mm, width 95 mm, weight 0.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
