24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

Single emission lines for outdoor application. The super warm LED light source is composed of 36 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 5616 lm, with a 153.9 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67,IK10.

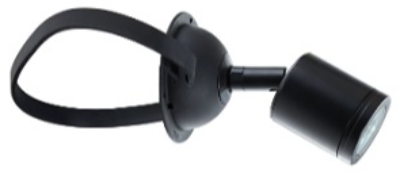

wall mounted for outdoor applications, single beam; surface mounted (wall); Power consumption: 3W; Power supply: 24Vdc; Lumen output at source: 147 lm (3000K, CRI >90); Delivered lumen output: 128 lm (3000K, 22°, CRI >90); 1 power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K; Optics: 22°: optical system consisting of a high-efficiency TIR lens
