PHOS

ADJUSTABLE DOWNLIGHT

OUTDOOR LIGHTING

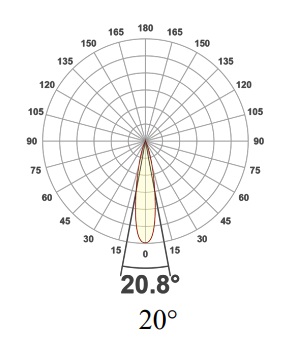

NA-EE-MTA_2700K-3W-20°

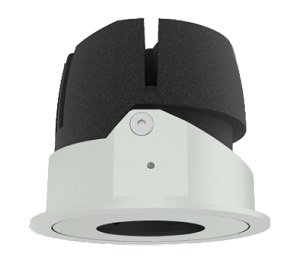

The Nano Eclipse Mini Trim is a recessed, tilt behind, adjustable downlight with a Ø56mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. 22° Tilt, 360° Rotation.

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

238LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

MEYER

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket: 2 drilled holes Ø 7 mm, spacing 30‑40 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 5°, luminous flux: 2855 lm, wattage: 46 W, delivered lumens 62 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

PLATEK

SPOTLIGHT

OUTDOOR LIGHTING

IP65 Spotlight body, bracket and closure flange made of AISI 316L stainless steel with pickling and passivation treatment. With the addition of SurfShield a special scratch-resistant finish treatment that ensures increased resistance of the steel to chemical and atmospheric aggressions. Provided with surge protection electronics and protection against polarity reversal during wiring. Supplied with 5M of cable to powered a 24V CV transformer to be wired in parallel. IP65/IP68, IK08

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of copper and stainless steel. Opal glass with sliding bolt glass closure 2 fixing holes ø 4.5 mm, 120 mm spacing 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Lampholder terminal 2.5@ Earth conductor connection, Lampholder E 27 Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark, c – Conformity mark.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68,IK08.
