PHOS

ADJUSTABLE DOWNLIGHT

OUTDOOR LIGHTING

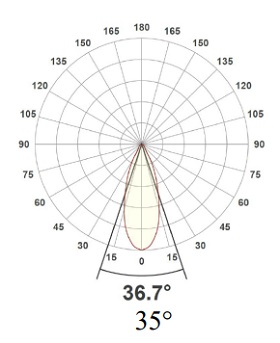

NA-EE-MTA_2700K-1W-35°

The Nano Eclipse Mini Trim is a recessed, tilt behind, adjustable downlight with a Ø56mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. 22° Tilt, 360° Rotation.

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

74LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of pet. The ingress protection degree is IP20; the total weight is of 0.42 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 85 x 85 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

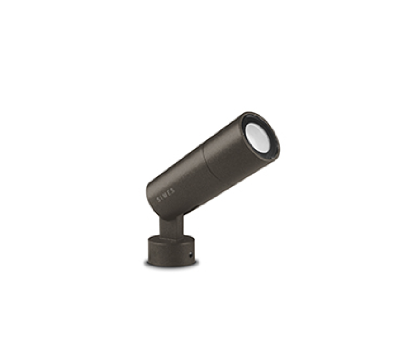

MEYER

SPOTLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, with partial frosting for uniform light diffraction and dark silk‑print, silicon gasket, closure with 4 stainless steel screws, mounting plate: 2 drilled holes Ø 7 mm, spacing 45 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 32° / 128°, luminous flux: 1521 lm, wattage: 28 W, delivered lumens 54 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,037 m², dimensions (L×H×W): 472 × 50 × 62 mm, weight 2.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

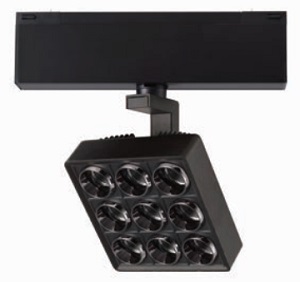

SPARK

TRACKLIGHT

INDOOR LIGHTING

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
