Product Detail | Bloxlimited

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

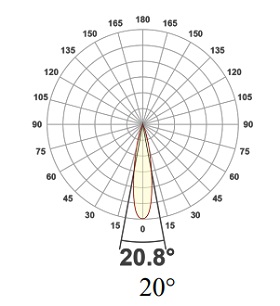

NA-EE-MTF_3000K-3W-20°

The Nano Eclipse Mini Trim Fixed is a recessed downlight, with a Ø56mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

293LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

PUK

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Round ceiling-recessed luminaire for outdoor installation, hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current max 700 mA driver needed, with 1 CREE XP-L LED. IP68 rating.

NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; LED 11W; measurement Ø71mm; ceiling cutout of Ø75mm with a trimless mounting; luminaire's weight is approximately 240g; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection IP20 (LED Module IP54)

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, luminous flux: 4060 lm, wattage: 46 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 190 × 160 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.44 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
