PHOS

RECESSED DOWNLIGHT
OUTDOOR LIGHTING

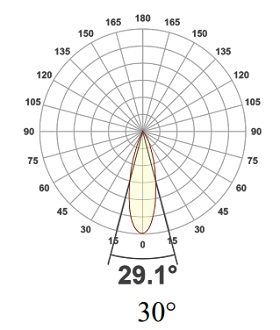

NA-EE-MTF_2700K-1W-30°
The Nano Eclipse Mini Trim Fixed is a recessed downlight, with a Ø56mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

Specification

Power
1W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
88LM
Finishing
WHITE
IP Rating
IP54
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

LUCI
LED STRIP
OUTDOOR LIGHTING

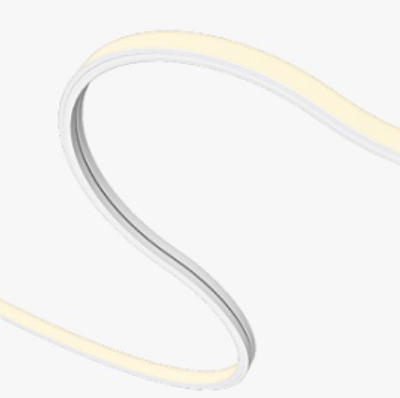

2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting.

The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT.

High efficient LED package achieving up to 185 lm/W.


XAL
CEILING LIGHT
OUTDOOR LIGHTING
Die-cast aluminium surface round ceiling light with white powder coated. Time saving installation through snap-in mounting system. LED board highly reflective lacquered for higher efficiency. Satin PMMA cover; luminaire with 2 cable openings and plug-in terminal for through wiring. IP54 (wall mounted) and IP50 (ceiling mounted). IK07 DIMENSION : D345MM * H80MM
EWO
POLE LIGHT
OUTDOOR LIGHTING

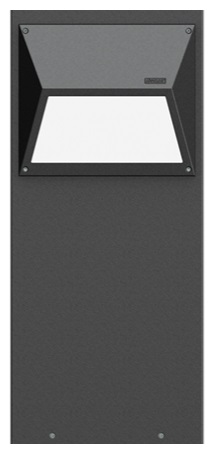

FA–Series Outdoor Pole light made of die-cast aluminium material and polyester powder coating finish. Anthracite finish color and safety glass. Luminaire available in Pole mount and Wall mount version. FO420 come with 0°-90° adjustable and horizontal pole mount. Suitable for Building area, high bay, street or walkway lighting application. IP66, IK08
XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
