PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

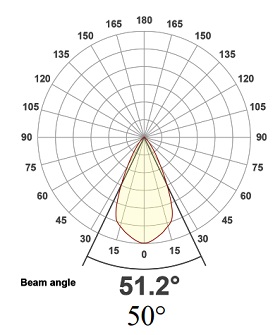

EY-RF_3000K-9W-50°

The Eyeconic Round Fixed is a recessed, fixed downlight with an ø80mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

597LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 1.05 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of copper and bronze alloy. Matt safety glass. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Connecting terminal 2.5@ with plug connection Earth conductor connection, LED power supply unit 220-240 V x 0/50-60 Hz. DC 198-280 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK10. Protection against mechanical impacts < 20 joule, r – Safety mark, c – Conformity mark.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable rectangular downlight with snoot and luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.
