PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

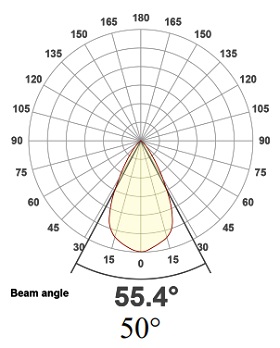

S-XL_2700K-14W-50°

he Soft XL recessed Ø80mm luminaire with an elegant small aperture made from machined aluminium with anti-glare deep set sculpted design for high visual comfort giving a soft glowing effect. Available in narrow and medium-light distribution beams. Reduced glare design with unique, elegant small aperture. Flawless finishes available on all components.

Specification

Power

14W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

621LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 92 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

DALITEK

CONTROL SYSTEM

INDOOR LIGHTING

DR485-TCP/IP-S is a flexible network connection setup (bridge) for connecting RS485 networks and networks or devices based on the TCP-IP protocol. As an extension of DR485, DR485-TCP/IP-S can achieve a tree-type (main-net and subnet) network structure in a large space area through the TCP-IP network (whether it is the original or the new), and two groups of ports are respectively connected to the high-speed backbone network and the lower-speed subnet.
