LUCI

LED STRIP

INDOOR LIGHTING

LNLY-1011-L30-DF-I-10

Updated with low wattage high lumen LED series

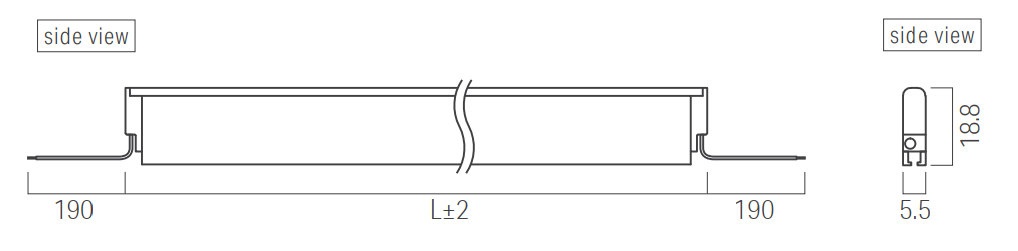

Available in 4 different wattage variations Customizable every 100mm increment up to 1.4m 5.5mm width homogeneous rigid light Ideal for recessed linear light for wall, ceiling and furniture Available for magnet installation

Specification

Power

10.8W

Color Temperature

3000K

Light Source Type

LED

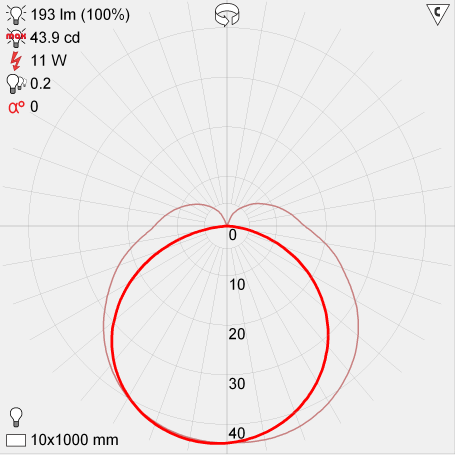

Lumen Output

193LM

Finishing

ALUMINUM

IP Rating

IP20

Color Rendering

CRI94

Driver

ON/OFF DRIVER

LOUIS POULSEN

RECESSED DOWNLIGHT

INDOOR LIGHTING

Ø75 The fixture head is fixed. Ø90 The fixture head is 30 degree adjustable and 360 degree rotatable.The adjustable downlight luminaire body made of alluminium and reflector is plastic. Powder coated anti-glare ring is black on all variants. Ingress protection IP20. DIMENSION: Width x Height x Length (mm) | 75 x 78 x 75 Max 0.4 kg | 90 x 83 x 90 Max 1.9 kg.

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 48° / 52°, luminous flux: 5288 lm, wattage: 46 W, delivered lumens 116 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 190 × 160 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

WE-EF

SPIKE LIGHT

OUTDOOR LIGHTING

IP66. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compres sion Gasket. Luminaire is factory-sealed and does not need to be opened during installation.Remote 24VDC power supply to be ordered separately. Optical accessories are factory-installed.To be specified at time of ordering.
