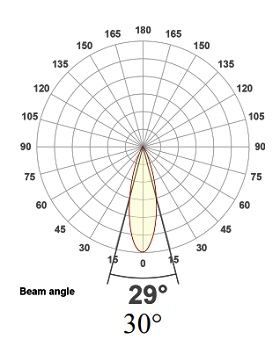

EE-SF_2700K-14W-30°
The Eclipse Soft is a fixed recessed downlight with a beautifully sculpted, trumpeted-shaped bezel. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires

Specification

Power
14W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
630LM
Finishing
WHITE
IP Rating
IP54
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

XAL
RECESSED LINEAR LIGHT
INDOOR LIGHTING

Rectangular recessed multi-downlight; equipped with four wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 70°; high quality reflector with micro-faceted, aluminum-vaporised surface; ;CCT 4000 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90; Rg: 99 | Rf: 92 | R{1-15}: 90; MR 0.81 | MDER 0.74; IP20; PC2; 36; incl. converter, Tunable white [Dali-2] 2700 – 5000 K (optional)


LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1724 lm, with a 132.6 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

Lightrod 80 is a cylindrical, satin acrylic tube from which light is distributed all around and out the fixture to provide 360 degrees of illumination. Available in suspended and wall-mount models.
