Product Detail | Bloxlimited

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

EE-MTF_2700K-14W-20°

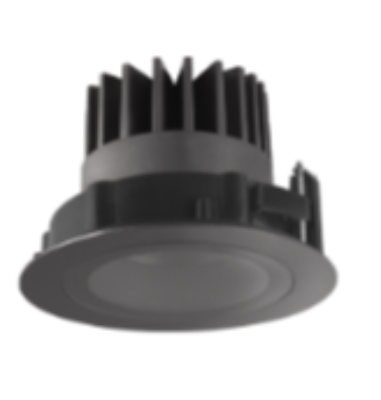

The Eclipse Mini Trim is a recessed, fixed downlight with a Ø86mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires

Specification

Power

14W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

650LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 127 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 6 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.690 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 270 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

UNIOS

INGROUND UPLIGHT

OUTDOOR LIGHTING

The Cluster Inground Uplight is a high-performing luminaire series with three output options, including a mini size, designed for landscape applications. The deep-set LEDs and honeycomb lens dramatically reduce glare and produce a sharper beam that will accentuate the space. The ingress protection degree is IP67.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 179 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.42 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 2 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 85 x 85 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
