LUCENT

Media Tube® Plus is a slim,diffused view lens, cover lens ( UV resistant polycarbonate 120x180D) luminaire designed to integrate into any wall, facade or media lighting application with tight installation requirements. 18 pixels per 600mm. LED pitch 16.7mm. Media Tube® Plus provides smooth effects to add life and motion to the installation. Featuring Auto-Addressing and simple quick lock connections, Media Tube® Plus is perfect for building façades, media applications, and more.

Dotless and three-sided light emission from the front side and the side surfaces expands design possibilities in terms of exhibiting the light source. The smart form allows a unique line lighting to materialize for fixtures, handrails and backs of mirrors etc.

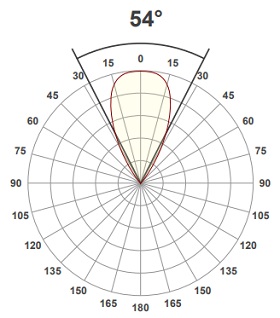

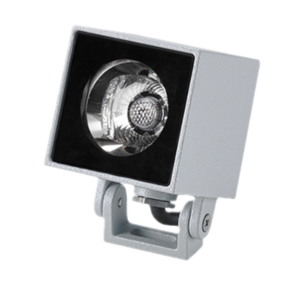

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 2954 lm, wattage: 37 W, delivered lumens 80 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,022 m², dimensions (L×H×W): 152 × 120 × 152 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
