LUCENT

SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

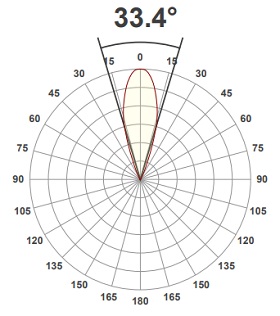

SURFACE MIDI SHALLOW HEIGHT_34°

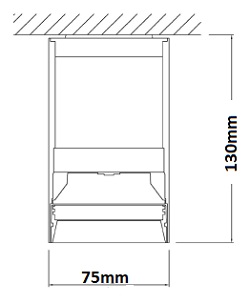

The New TubeLED Midi Surface Shallow is 75mm diameter and with remote drivers and a choice of dimming protocols. Available in 3 colour temperatures and 3 beam angles.

Specification

Power
22W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1226LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI ≥90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING

Single emission submerged for outdoor application. The natural white LED light source with a extra wide flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of stainless steel and features a steel finish, processed by means of shot peening. The ingress protection degree is IP68, IK10.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.021 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 15 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

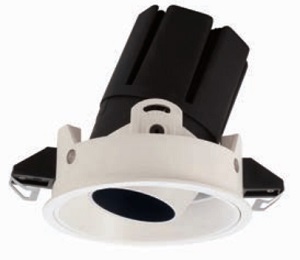

ELR
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 83mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional 40 linear lens, colour, light effect filters and honeycomb and anti-glare louvre.
TRAXON
CONTROL SYSTEM
INDOOR LIGHTING

The RDM Isolator repeats DMX and e:pix (one way) as well as RDM (bi-directional) signals over a galvanic isolation barrier. The power supply has a separate isolation barrier (“external” selected) or is aligned with the output potential (“DMX power” selected). Main features include : 1 kV isolation, USITT DMX512A and e:pix compatibility, 1 MBaud data speed (epix), RJ45 power back selectable, Separate, fully isolated power supply port, Flexible data ports (RJ45 or screw terminals), Full ANSI E1.20-2010 RDM support, Status LEDs.
