LINEALIGHT

Based on the experience gained with PROLICHT Vertical Boost Wallwashers, the MAGIQ Hollow Wallwash recessed spotlight was designed as a range extension of the popular MAGIQ product family. With the 8 fully integrated Bartenbach reflectors we are able to finish flush with the ceiling, even with a wallwasher. The interaction of the patented reflectors with the mirror elements makes it possible to use it as a glare-free wallwasher that invisibly integrates into well thought-out architecture.

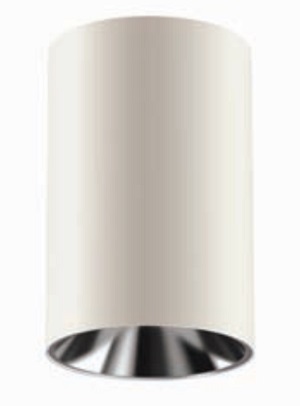

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs . The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

Double emission bollard & pole for outdoor application. The warm white LED light source with a asymmetric 360° light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a grey ral 7021 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polymethylmethacrylate. The ingress protection degree is IP65, IK09.
