ELR

RECESSED DOWNLIGHT
INDOOR LIGHTING

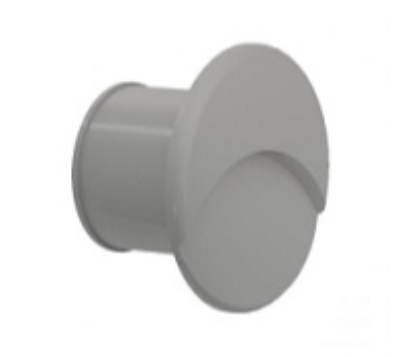

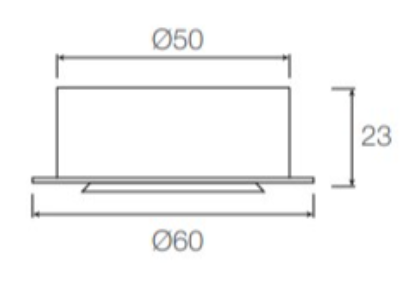

Coin Recessed_4.5W

A series of puck lights derived from ELR’s Coin LED module,designated to illuminate objects on cabinets or shelves. Coinpuck lights are available in both constant current and constant voltage variants, and comes in recessed, semi-recessed and surface mounted forms that suits different installation and application requirements.

Specification

Power
4.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
385LM
Finishing
WHITE
IP Rating
IP54
Color Rendering
CRI 95
Driver
0-10V DRIVER

See more

SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.

XAL
SURFACE LINEAR LIGHT
INDOOR LIGHTING

Rectangular surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface jet black powder coated; equipped with six medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; Reflector black; UGR ≤ 10; passive cooling of the LEDs through improved hea

LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The natural white LED light source with a medium flood light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 155 lm, with a 155.0 lm/W nominal luminous efficacy. The device body is made of aisi 316 steel and features a steel finish; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP68; the total weight is of 0.066 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 1 W. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights or floormounted with an outer casing, code 99678 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
PROLICHT
PENDANT
INDOOR LIGHTING

The pendant luminaire SIGN DIVA KORONA from the familiy SIGN consists of aluminum. With 3 powder coated options 15625 colour combinations can be achieved. SIGN DIVA KORONA enhances the architecture with the KORONA EFFECT. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). SIGN DIVA KORONA (# 410-3932) is dimmable via BUS. The luminaire with direct illumination and corresponds to protection class SK1 at IP20.
