KALCO

Dot designed to be integrated in new or retrofitted handrails. Suitable for outdoor: IP66, IK10, and anti-vandalism. Flat and curved types. 3 beam angles: 60o, 120o and 90o (asymmetric). Luminous efficiency: 100 lm/W. 316 stainless steel unibody dot. Polycarbonate lens. Accessories: Installation tool and M16 Drill jig equipment.

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, lockable, tilt range: 0‑15°, lockable, 0,8 m cable H07RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 55°, luminous flux: 838 lm, wattage: 11 W, delivered lumens 76 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 180 mm, width 152 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks.

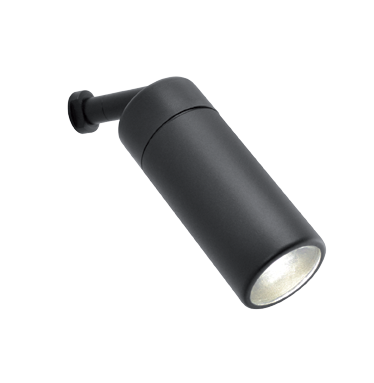

Floodlight with mounting box for permanent installation on a wall, under a ceiling or on a pillar. Floodlights for illumination of plants and small woodlands; for walls, advertising boards and other surfaces. For lighting details and for many other lighting purposes in private or public sectors.

Single emission uplights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 9 powerled LEDs. The luminaire body is made of aisi 316 steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67, IK10.
