XAL

Recessed walls and staircases luminaire for flush or surface-mounted installation. With asymmetrical light distribution for glare free illumination of surfaces from low mounting height. Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Tricoat® coating technology. Clear safety glass and fixing is achieved by using two adjustable wedge-shaped claws. IP65, IK08

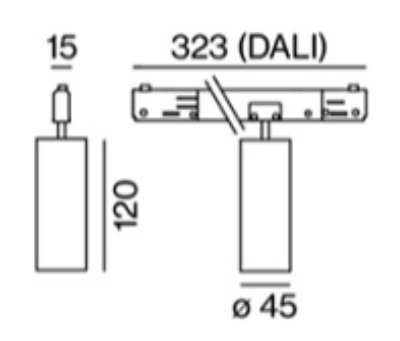

DIMENSION : L320*W70*H70MM

SMALL AND COMPACT SUPER INTENSE 8W SINGLE LED LIGHT SOURCE ANTI-GLARE OPTIONS FOR VISUAL COMFORT VERSATILE MOUNTING SYSTEM SURFACE TREATED FOR EXTREME CONDITIONS HIGH CORROSION RESISTANT TOUGHENED SAFETY GLASS CONTROLLABLE USING 1-10V, DALI OR DMX DRIVERS.IP67.

Decorative elements and reflector in solid bronze are treated with a transparent protective layer that maintains the color and ensures quality and durability. Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 06. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
