LED LINEAR

Shielded bollard made of stainless steel with rotationally symmetrical light distribution. For the illumination of walkways, entrances and access roads. The light of the LED is directed by a reflector onto a conical reflector. Illumination on the illuminated surface is rotationally symmetrical, broad spread and uniform. Luminaire made of stainless steel, IP65.

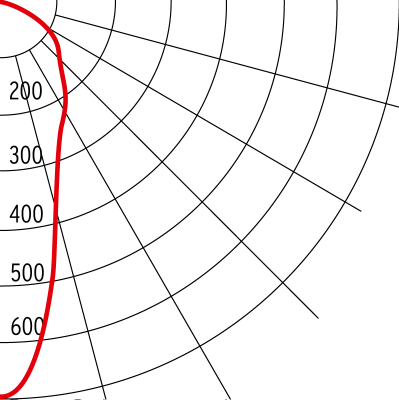

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, with grub screw, ceiling mount: 2 drilled holes Ø 4 mm, spacing 86 mm, cable gland: Ø 4‑11 mm UP, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 33°, luminous flux: 727 lm, wattage: 13 W, delivered lumens 58 lm/W, protection type IP65, protection class I, impact resistance IK08, dimensions: Ø 149 mm, width 121 mm, weight 2 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

TO BE CONFIRM

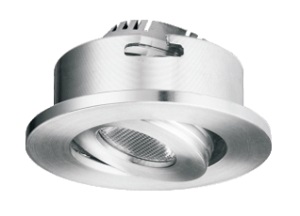

Recessed wall reading light made of aluminium housing with white powder coated finish. Luminaire head can be rotated 350° left and right and 90° up/down. Cut-out dia 55mm by 60mm depth hole for installation bracket and driver. Luminaire built-in switch when head pressed in, the light switched off. Color finishing available White, Black, Silver and Chrome.
