PHOS

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

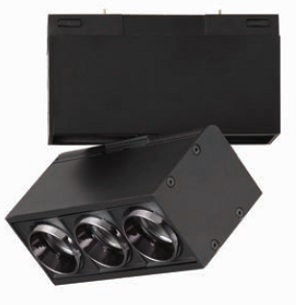

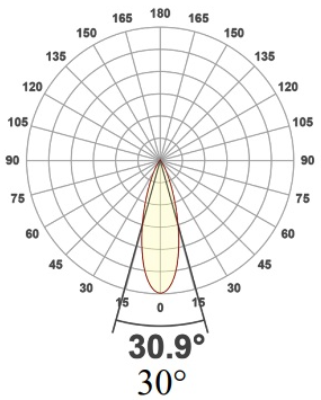

MX-OC-SPS_3000K-11W-30°

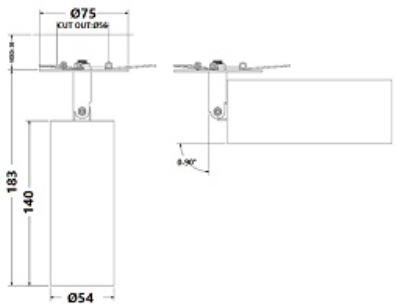

Featuring a Ø75mm spring-mounted plate to enable the driver to be mounted in the ceiling void behind. The Maxi Is a high output downlight while still maintaining a surprisingly compact form. 360° rotation .90° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires. Driver fits through ceiling cut-out.

Specification

Power

11W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1230LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; System Power 15W; measurements Ø110mm x 131mm; ceiling cutout of Ø100mm with a narrow mounting trim; ceiling thickness 1-25mm; rotation 355° and pivot max. 30°; CCT 2700K with a System luminous flux of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty.

LINEALIGHT

LINEAR LIGHT

OUTDOOR LIGHTING

Single emission lines for outdoor application. The super warm LED light source with a asymmetric wallwasher light distribution is composed of 24 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2544 lm, with a 148.8 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68.

SIMES

BOLLARD

OUTDOOR LIGHTING

The wiring of the fixtures must strictly respect the specifications. Where not provided by the fixture loop in /out or through wiring will cause infiltration of humidity and if in contact with the cables this may lead to an accelerated process of oxidation.

WIRING

Luminaire supplied with 5m (4m Bollard) of cable. Isolation: CLASS II .
