Product Detail | Bloxlimited

NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

TA8 + LED Module_M3-9303511A-TA8-BBB

TA8 + LED Module M3-9303511A-TA8-BBB

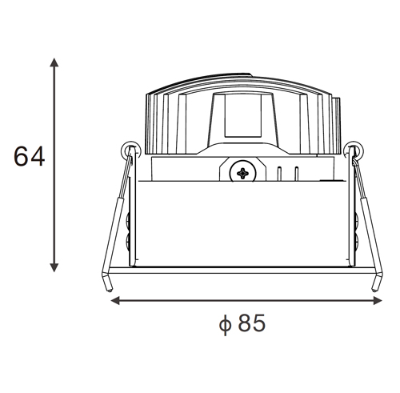

Round spotlight for recessed installation made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; 0-10V Dim Driver; LED 11W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire's weight is approximately 200g; rotation 355° and pivot max. 18°; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy ef

Specification

Power

13W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

740LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

0-10V DRIVER

LINEALIGHT

TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 98; the source luminous flux is 1482 lm, with a 114.0 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg.

SPARK

SURFACE TRACKLIGHT

INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

LINEALIGHT

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The super warm LED light source with a flood light distribution is composed of 1 arrayled LEDs. Luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44;

DALITEK

CONTROL SYSTEM

INDOOR LIGHTING

Relay module support opening and closing of 9 channels 20A single pole single throw relays for resistive, inductive, capacitive load. 220V ± 10% 50Hz, 20mA. Phase-independent. Manual over-ride for any channel. Intelligent "built in" progragation can be set. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure).
