NEKO

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
TA5 + LED Module_M4-9302013A-TA5-WW

TA5 + LED Module_M4-9302013A-TA5-WW

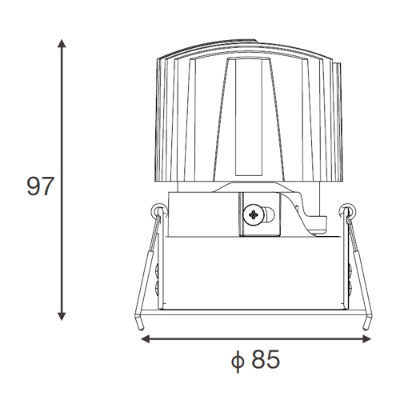

Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 0-10V Dim Driver; LED 13W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire's weight is approximately 300g; rotation 355° and pivot max. 30°; CCT 3000K with an LED Output of 1400lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CI

Specification

Power
15W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
920LM
Finishing
WHITE/WHITE
IP Rating
IP20
Color Rendering
CRI 90
Driver
0-10V DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.192 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
FLOS
RECESSED DOWNLIGHT
INDOOR LIGHTING
Embedded luminaire for LED light source. Remote 220/240V power supply included.Pre-installation frame must be ordered separately. The ingress protection drgree is IP20.
LUCE & LIGHT
WINDOW LIGHT
OUTDOOR LIGHTING

Projector for outdoor applications; surface mounted (windowsill, arch); Power consumption: 7W; Power supply: 230Vac;2 power LEDs, LED colour: 2700K; Optics: clear 10°x180°: optical system consisting of a clear TIR lens combined with a shielding element to obtain a clear and aberration-free semicircular light beam; CRI: 80; IP65; IK05; Operating temperature: -20°C — +45°C; Glow wire test: 960°C; Weight: 790 g; Dimensions: 130x92x54 mm


SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed pin-hole downlight made of aluminium housing with white powder coated finish. Black finish available upon request. Luminaire come with 2 different sizes, 6-8W in Ø63mm and 8-15W in Ø90mm.
