XAL

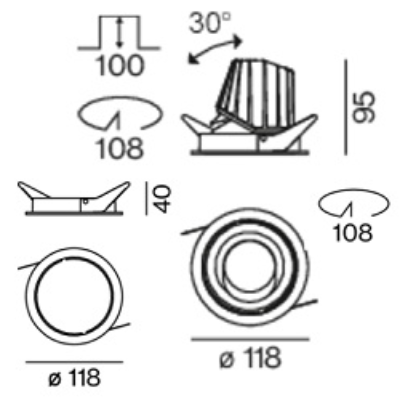

Moto Rino is intelligent due to their inbuilt memory, allowing them to instantly recall pre-recorded position, color temperature, beam angle, and dim level settings previously recorded via the CASAMBI™ control app. Available in standard and backlight versions, trim and trimless. In the Backlight version, the spotlight and backlight can be controlled independently, so an ambient effect can be easily created. Two DC motors drive the movements of the fixture, which is tiltable vertically up to 30° and horizontally 330° Pan. The color temperature avaiable 2700k,3000k,3500k and 4000k.

Fixing base in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. AISI 301 Stainless-steel end caps for the extruded parts. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 08. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

LED luminaire come with 2 types of LED pitch 7.1 or 17.8mm for profile and cove lighting. 5 types of wattage 2W/m to 15W/m in same LED pacakge to match CCT. High efficient LED package achieving up to 185 lm/w.

The module realizes the opening and closing control of three circuits by controlling three 20Asingle pole single throw (SPST) relays, and various logic timing control can be realizedthrough configuration. The module has an internal temperature sensor to monitor theoperating temperature to ensure safety.The module is compatible with other a dry contact input module.The module can form a control system with panel, clock, sensor and other equipment throughRS485 bus.
