BEGA

BOLLARD
OUTDOOR LIGHTING
84 074 K3

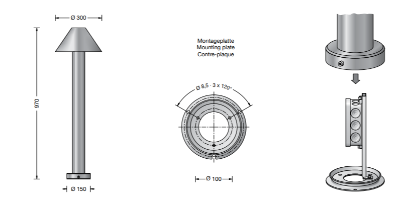

Luminaire made of copper and stainless steel Baseplate made of cast bronze Crystal bubble glass with screw neck Silicone gasket Luminaire with mounting plate for bolting onto a foundation or an anchorage unit Mounting plate with 3 fixing holes ø 8.5 mm · Pitch circle ø 100 mm Mounting bracket with connection box and 3-pole terminal 4@ for connection of mains supply cable max. 3 × 2.5@ Lampholder E 27 Safety class I Protection class IP 64 Dust-tight and protection against splash water r – Safety

Specification

Power
7W
Color Temperature
3000K
Light Source Type
E27 LED
Lumen Output
805LM
Finishing
COPPER
IP Rating
IP64
Color Rendering
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.8 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.3 m length. The device features protection class III and can be ceiling-mounted, with a 210 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
CATELLANI & SMITH
BOLLARD
OUTDOOR LIGHTING

standing lamp designed with a transparent or irregular glass sphere, mounted on a black varnished metal stem with brass details. The light source is a LED bulb G4, 12Vdc, 0.8W, providing 69 lumens at 2700K with CRI 80. The fixture has a protection grade of IP65 for the lamp holder and IP68 for wires and connectors, making it suitable for outdoor use but not for full immersion.

LINEALIGHT
LED NEON TUBE
OUTDOOR LIGHTING

Single emission submerged or led strip for outdoor application. The super warm white LED light source with a diffused light distribution is composed of 560 topled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP68, IK07.

LINEALIGHT
RECESSED LINEAR LIGHT
INDOOR LIGHTING

Single emission systems, lines or lines for indoor application. The warm white LED light source is composed of 156 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1470 lm, with a 122.5 lm/W nominal luminous efficacy.

The device body is made of aluminium alloy 6060 and features a white ral 9003 embossed finish, processed by means of polyester powder coating (qualicoat). The ingress protection degree is IP40.
