NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

TA5 + LED Module M4P3-0301513A-TA5-BB

TA5 + LED Module/ M4P3-0301513A-TA5-BB

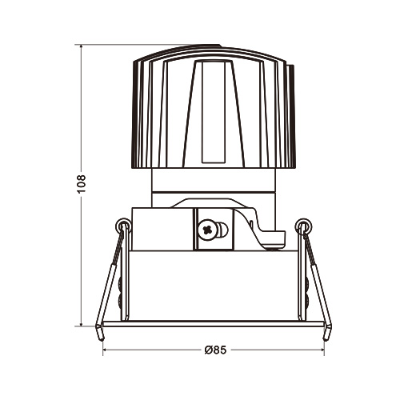

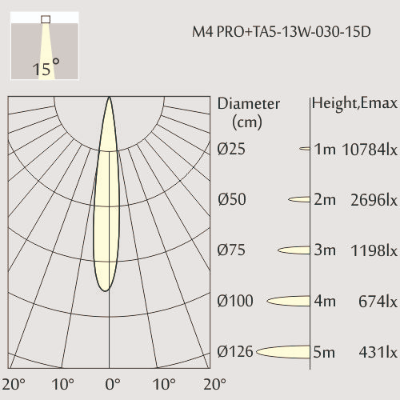

Round recessed mounted downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; LED 13W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; rotation 355°and pivot max. 30°; CCT 3000K with a System Luminous Flux of 1000lm high color rendering at an index of CRI97; SDCM: 2; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warrant

Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1000LM

Finishing

BLACK/BLCK

IP Rating

IP20

Color Rendering

CRI 97

Driver

0-10V DRIVER

MEYER

POLE LIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 41°, luminous flux: 1483 lm, wattage: 55 W, delivered lumens 27 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 127 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

PHOS

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

The Maxi Occular Wiring Housing has no visible fixing, the surface-mounted Wiring Housing enables the secondar wiring connections from a remote driver driver. The Maxi is a high output downlight while still maintaining a suprisingly compact form.

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Ceiling and wall luminaire with emergency lighting function according to DIN EN 60598-2-22 and DIN VDE 0108-100 for integration in emergency escape lighting systems. With integrated single battery for 3 hours’ emergency operation in the event of a power failure. Luminaire made of aluminium alloy, aluminium and stainless steeL. IP65, IK07.
