PLUS LIGHT TECH

SURFACE LINEAR LIGHT

INDOOR LIGHTING

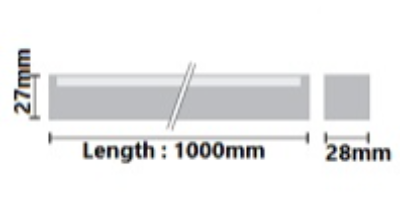

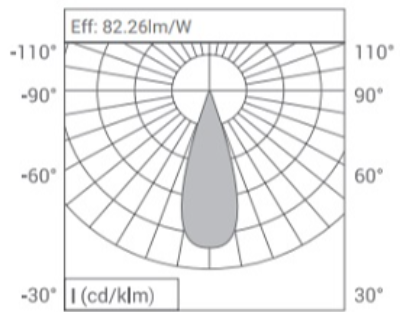

ILIOS CURTAIN GRAZER SURFACE_27-57K-16°

Luminaire surface linear lights that provide a seamless look and clean elegance. These luminaires, by their design hide the fixtures to allow the light itself to play the dominant role. These fixtures are modular and can be extended for desired length without any requirements.

Specification

Power

25W/M

Color Temperature

TW - 2700K-5700K

Light Source Type

LED

Lumen Output

2000LM/M

Finishing

ALUMINIUM

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 110 mm, cable entry 7 – 10 mm, for recessed or surface mounted cable, tilt range: 200°, cable gland: M20, connecting terminal: 3 pole, efficient high gloss aluminum reflector in combination with hybrid lens for narrow beam light distribution in shallow luminaire housing, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 16°, luminous flux: 2723 lm, wattage: 26 W, delivered lumens 105 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 183 × 70 × 183 mm, weight 3.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

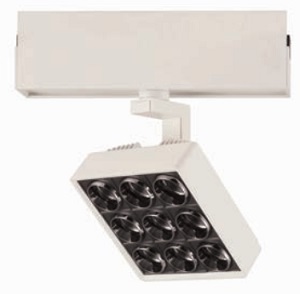

SPARK

SURFACE TRACKLIGHT

INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

DALITEK

CONTROL SYSTEM

The Artistic Licence dVnet Server is a powerful engine for large universe count pixel mapped installations requiring media and video content playback.Three versions of the server allow for installations of virtually any scale to be achieved. With 64, 128 and 256 Universe options dVnet can accommodate up to 131,072 DMX addresses/channels or 32,768 RGBW pixels.

UNILAMP

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.
