PLUS LIGHT TECH

WALLWASHER

INDOOR LIGHTING

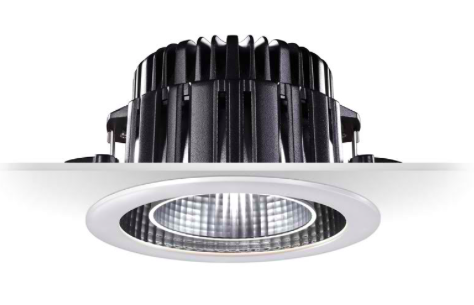

OPTI_LARGE_WW_DL_27-57K N01

The luminaire ceiling-recessed Downlight + Wallwasher that highlight the desired subject or place and provide optimum illumination by being nondescript. Luminaire housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. The mounting fixture is designed simply for ease of installation. The simplicity of its form provides smooth integration in architectural features.

Specification

Power

50W

Color Temperature

TW-2700K-5700K

Light Source Type

LED

Lumen Output

4228LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

ILIGHT

CONTROL SYSTEM

The SCMH0410-G2 is an indispensable addition to our family of DIN rail source controllers. Bringing together the best of our compact switching and DALI, 0/1-10V control products, the result is a compact yet powerful controller that supports innumerable applications, both in networked systems and as a standalone room controller. Each of the four volt free contacts can be switched independently or in tandem with the signal lines, switching up to 10A of load, they can just as easily be employed to control ancillary items such as local HVAC, air handling units or other non-lighting devices. All switched outputs are phase independent and support AC, DC or volt free contact switching applications. With an integral power supply, SCMH0410-G2 has sufficient capacity to support 50 DALI ballasts or 30 0/1-10V ballasts per signal output. Eight inputs provide the opportunity to connect a wide range of peripheral volt free contact devices, such as simple momentary action switches, door/window contacts, alarm inputs or presence/absence detectors. With iLight network connectivity, the SCMH0410-G2 can be linked with a virtually limitless number of other iLight products to build a system of any size.

WAKO

WALLWASHER

OUTDOOR LIGHTING

MINI WALL WASHER, Size L1000*W36*H28MM. Number of LED per meter 30, Power Input 350mA Constant Current, Available dimming 0-10V, 1-10V, DALI and DMX PWM, IP40 or IP67 Protection.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

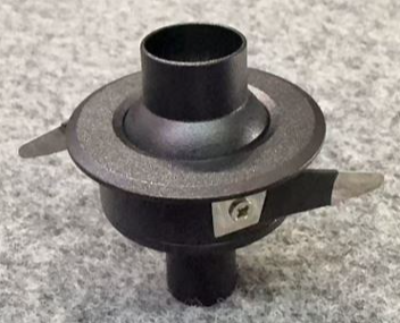

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.048 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

CLEAR LIGHTING

LED STRIP

OUTDOOR LIGHTING

FLEXGLO F16 Vertical Bending silicon LED strip, min bending diameter 50mm. Anti-yellowing and come in Mono CCT, tunable CCT and RGB / RGBW version. Solvents, UV, Flame and Salt water resistant. IK08 Protection.
