ELR

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

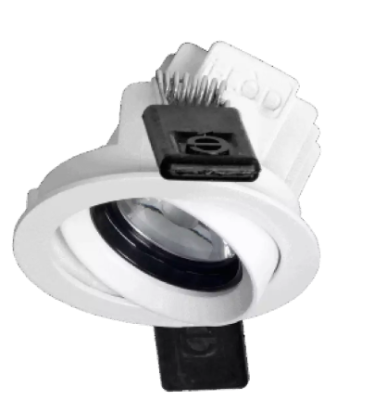

CASTOR 3 MINI RD TILT - 50C 10D

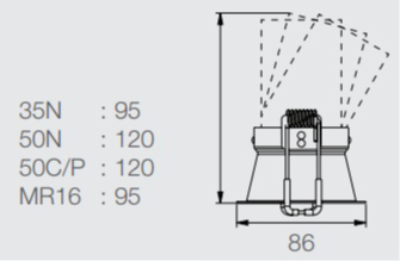

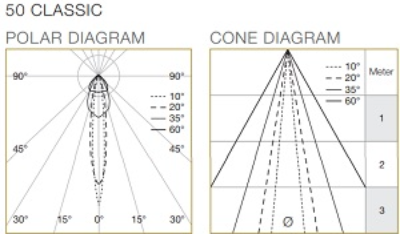

Recessed round downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre

Specification

Power
LED 10W
Color Temperature
3000K
Light Source Type
n/a
Lumen Output
850 LM
Finishing
MATT WHITE/MATT BLACK
IP Rating
IP20
Color Rendering
CRI 85
Driver
ON/OFF, 0-10V, DALI

See more

NA
PENDANT
INDOOR LIGHTING

TO BE CONFIRM

WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING

RGBW Colour Changer. Stainless steel construction including PCS hardware. Safety glass lens. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. LED circuit board with WEEF Colour Boost Technology. DMX Interface.

LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP65; the total weight is of 0.15 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Luminaire can be mounted for up or down lighting. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.
