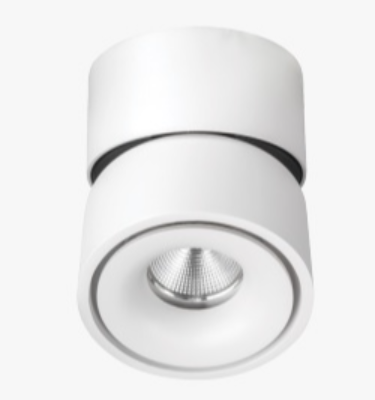

ELR

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

VASARI 3 RD TILT TL - 50N 10D

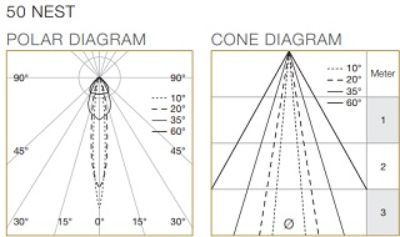

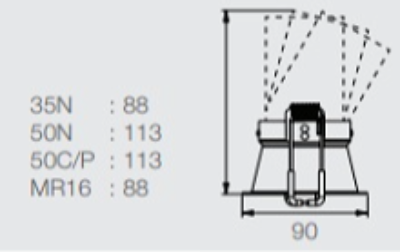

Compatible with MR16, 35 and 50 series LED modules. Colour temperature options 2700K, 3000K, 4000K, 5000K, tuneWHITE,WarmDim. Colour rendering index 85 or 95. Up to 50,000 hours L80 lamp life with. LM80 tested LED chip packages. Beam pattern options ClassicPRO 10, 20, 35, 60 .Luminous flux 310lm to 1600lm depending on LED module.Supplied with non-dimmable or phase0-10VDALI dimmable LED driver, 90mm cutout,30 tilt ATePS Automated Thermal, Protection System, ComfyEYE, reduced flicker percentage, Interchangeable LED module system, Optional IP54 seal, colour and light, effect filters and honeycomb anti-glare, louvre.

Specification

Power

LED 7.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

750 lm

Finishing

MATT WHITEMATT BLACK

IP Rating

IP54

Color Rendering

CRI 85

Driver

ONOFF, 0-10V, DALI

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 490 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.12 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 4 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 40 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

UNIOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

LED LINEAR

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

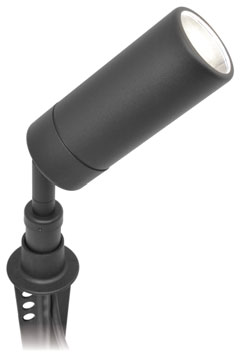

Luminaire with 45° adjustable head with a clear encapsulation and reflectors for general lighting applications. Polyurethane is utilized in XOOLUM to make it more resistant to impact from salt water UV-light and solvents. Modular mounting and lighting scenery thanks to its LEDs-Click technology enabling a 45° tilt of the luminaire head. Appealing form factor of 25.4mm*31mm which blends easily in any architectural concepts.

SIMES

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

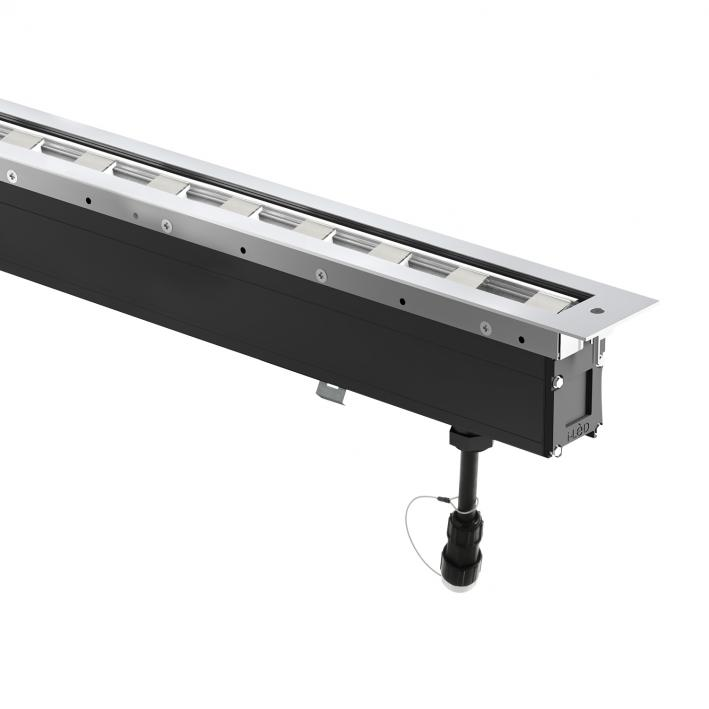

Fixing base and recessing box in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Mechanical resistance IK 10 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: G. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
