FLOS

Surface mounted modular system in die cast aluminium. Available in different length configurations based on a 83mm link (2 LED per link) with a 76mm increment. Section 34x36.6mm. Its flexible structure maintain a constant 38mm pitch between the LED.  Its flexible design ensures a consistent 38mm pitch between LEDs for seamless light distribution. The system is supplied inclusive of driver for easy integration and installation.

EP55: Spotlight with bracket - Warm White LED - On/Off - Very Wide Flood optic

Life Time: 100,000h - L90 - B10 (Ta 25°C)/Life Time: 100,000h - L90 - B10 (Ta 40°C)/Intervallo temperatura ambiente: from -25°C to 50°C./Number of optical assemblies: 1/Optical assembly Characteristics Type 1:/Light Output Ratio (L.O.R.) [%]: 76/Number of lamps for optical assembly: 1/Lamp code: LED

Floodlight designed to use Warm White LED lamps with a Very Wide Flood optic. Can be installed at ground level, on walls (using screw anchors) and on pole mounting systems. The luminaire consists of an optical assembly/component-holding box and hidden fixing bracket. The optical assembly and front frame are made of die-cast aluminium alloy painted with a smooth finish (grey RAL 9007) or a textured finish (white RAL 9016).

Front cover Housing Hard chromeplated molding shaped stainless steel SUS 316L, Light window Step tempered glass.T8mm, LED Driver Constant Voltage Input,Constant Current Output.

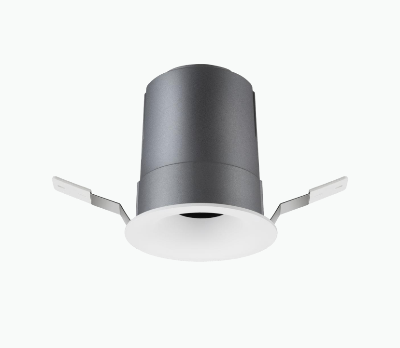

Single emission downlights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 92; the source luminous flux is 1152 lm, with a 128.0 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.28 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 9 W. The power supply cable is included and features a 0.11 m length. The device features protection class III and can be ceiling-mounted, with a 114 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions
