LUCE & LIGHT

DASH 50 Recessed: D5R01140-930HPF-WO

Recessed LED luminaire with direct beam made of high-quality extruded aluminium profile; white powder-coating finish – textured matt (RAL 9016); ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 29W – High Power; Dimensions of the profile channel (LxWxH): 1140mm x 63mm x 125mm; ceiling cutout of 1135mm x 57mm with a narrow mounting trim; luminaire's weight is approximately 2500g; CCT 3000K with a System Luminous Flux of 2440lm; high color rendering at an index of CRI>90; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) opal; degree of housing protection IP20; RG<1 (EN62471); protection class I

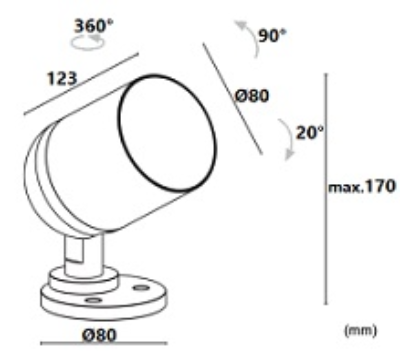

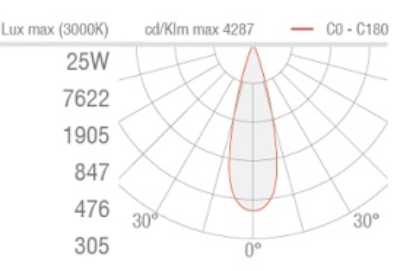

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Clear safety glass Silicone gasket Optical silicone lens · BEGA Hybrid Optics® Reflector surface made of pure aluminium Rotation range of floodlight 350°. IK09 Symmetrical wide beam light distribution Half beam angle 64° By changing the diffuser lense it is possible to alter the symmetrical light distribution into a flat beam light distribution. Luminaire data for the light planning program DIALux for outdoor lighting, street lighting and indoor lighting. The ingress protection degree is IP65,IK09.

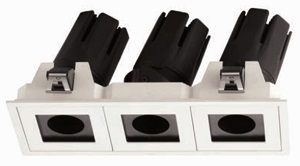

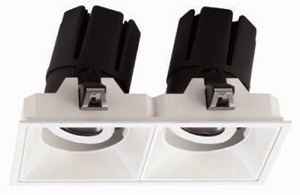

Recessed adjustable rectangular downlight luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.

Single emission recessed downlights for indoor application. The warm white LED light source with a medium ligh distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.
