PHOS

TUBE a family of cylindrical sharped wall light, ceiling light and area light. The body components are made from extruded and LM6 aluminium which make them highly corrosion resistant to any extreme environment. TUBE is protected from the ingress of dust and water and are used in both outdoor and indoor environments. Fitted with COB LED in three color temperature from 2700K, 3000K or 4000K with high CRI. TUBE can slove many lighting tasks in modern architectural surrounds and are generally used in illuminating columns and facedes. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

LED surface-mounted luminaire with direct light, made of high-quality extruded aluminium profile; black finish (RAL 9005) and chrome black reflector; GR6d-15 socket – reverse polarity protection and tool-free lamp replacement without opening the lamp; incl. illuminant DSD26-L120-830-BC according to ZHAGA Book 14; ON-OFF driver; 300-800mA; Input voltage AC 220-240V~50/60Hz; Dimension 1182mm x 45mm x 80mm; light color 3000K; good color rendering of CRI80

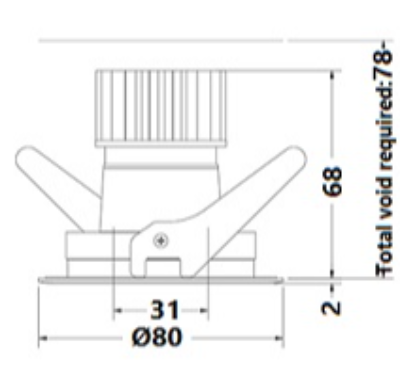

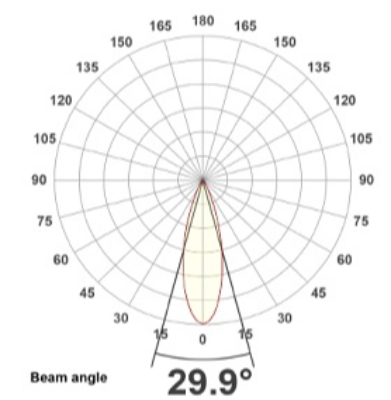

Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre

Surface mount downlights for indoor application come with a medium flood light distribution is composed of 1 power led. Luminaire body is made of ot58 brass and features a white finish, processed by means of powder coating. The ingress protection degree is IP52;
