SPARK

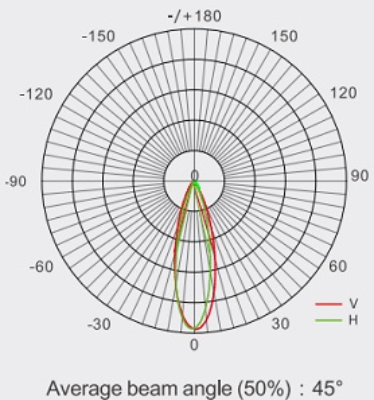

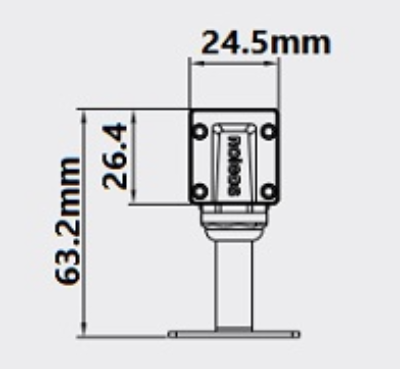

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, mounting bracket powder coated aluminum: 1 long hole Ø 6.5 mm, spacing 15 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, highly efficient aluminum hybrid‑reflector with lens for narrow beam control , with 0,8 m cable H05RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 326 lm, wattage: 5 W, delivered lumens 65 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 61 × 67 × 60 mm, weight 0.47 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

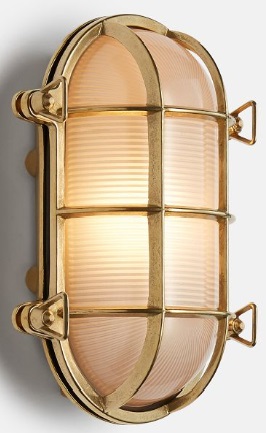

Luminaire made of copper, brass and stainless steel. Antique glass. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing 1 cable entry for mains supply cable up to ø 10.5 mm, max. 3 × 1.5@ Connecting terminal 2.5@ Earth conductor connection. Lampholder E27. Safety class I, Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark, c – Conformity mark. Weight: 2.3 kg Copper. The luminaire parts made of solid copper are delivered with the metal’s natural surface colour. Time and weather factors create

Luminaire housing made of dezincificationresistant cast brass. Water pressure-tight underwater floodlight for the illumination of non-accessible ponds, pools and water features with a depth up to 20 metres. The cast brass used in these luminaires is the optimal material for long-term underwater use. The material is approved for drinking water and is resistant to sea water. The ingress protection degree is IP68,IK09. DIMENSION:( WIDTH x HEIGHT x DEPTH ) ( 230 x105x240 )mm.

Single emission lines for outdoor application. The warm white LED light source is composed of 11 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.1 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
