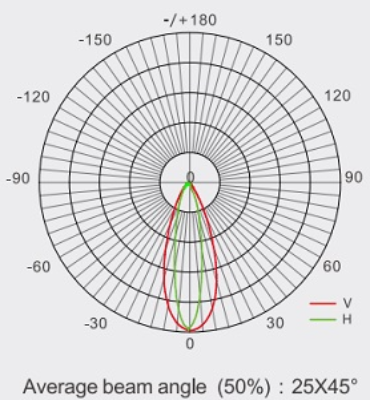

SPK_24_3000K-25° X 45°

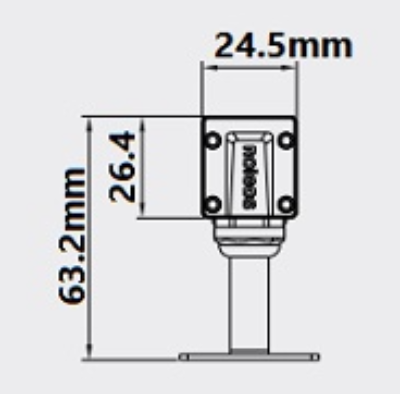

Wall-washer luminaire series of extremely compact dimensions with integral 24VDC driver . As well as individual luminaires there is also a modular system available for creating continuous lines with barely any shadow between the sections. The very slim cross section allows for discreet installation. The luminaires are available with wall washer optics or in asymmetrical distribution. The ingress protection degree is IP66.

Specification

Power
12W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
624LM
Finishing
BLACK
IP Rating
IP66
Color Rendering
CRI 80
Driver
DMX 512

See more

LIGHTFORMS
SURFACE TRACKLIGHT
INDOOR LIGHTING
Lightplane 1 Concave is a suspended, wall or surface mounted luminaire with direct, indirect or direct-indirect distribution. The fixture features arching, interior sides that lead to a slightly recessed lens within the channel. With a cross section dimension of just 50mm, the Lightplane 1 Concave body houses a LED driver integral to the channel creating a remarkably low-profile luminaire.
LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The super warm white LED light source with a medium flood light. The device body is made of die-cast aluminium and features a black finish. The ingress protection degree is IP68; the total weight is of 0.9 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 1 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99857(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LUCI
LED NEON TUBE
INDOOR LIGHTING

Dimmable : Yes (0-10V/1-10V, DMX, DALI, PWM)

Environment : Indoors (no condensation)

Certification : CE , PTB FREE

Material : Silicone

IGUZZINI
LINEAR DOWNLIGHT
INDOOR LIGHTING

Wiring: direct current ballasts to be ordered separately: electronic (MXF9) for max. 7 LEDs; DALI dimmable (BZM4) for max. 20 LEDs (check instruction leaflet for compatible lengths of cables to be used)
