MEYER

POLE LIGHT
OUTDOOR LIGHTING
8 993 246 049

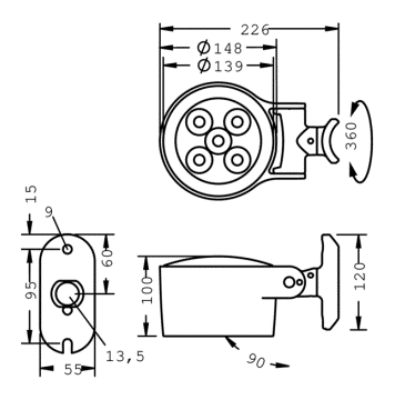

Luminaire housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process. Housing color is black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket.  M16, connecting terminal: 5 pole, highly efficient faceted rotationally symmetrical reflector. The ingress protection degree is IP67, IK08. DIMENSIONS: Ø 148 mm, width 100 mm.

Specification

Power
26W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1592LM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI >80
Driver
ON/OFF DRIVER

See more

XAL
RECESSED DOWNLIGHT
INDOOR LIGHTING

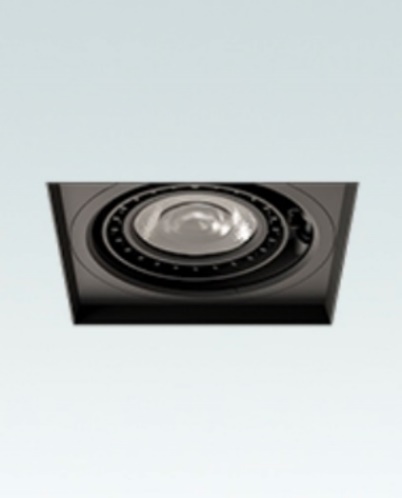

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two wallwasher floor light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
APEX
WALLWASHER
OUTDOOR LIGHTING

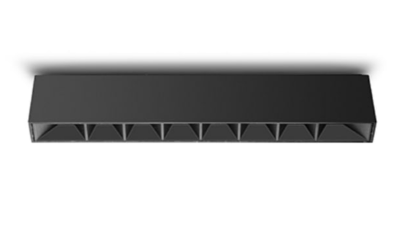

APEX linear Wallwasher luminaire light, available in 3 different beam angle 30°x80°, 45°x85° and 60°x95°. Luminaire dimension (H)18.77mm x (W)17mm x (L)1000mm. 70LEDs/M. IP65.

ELR
WALLWASHER
INDOOR LIGHTING

ASYMMETRIC WALL WASHER RECESSED DOWNLIGHT LUMINAIRE

IGUZZINI
SPOTLIGHT
OUTDOOR LIGHTING

Spotlight designed to use LED lamps and a Medium optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. 5 mm thick tempered sodium-calci
