Product Detail | Bloxlimited

LUCELIGHT

FOOT LIGHT

OUTDOOR LIGHTING

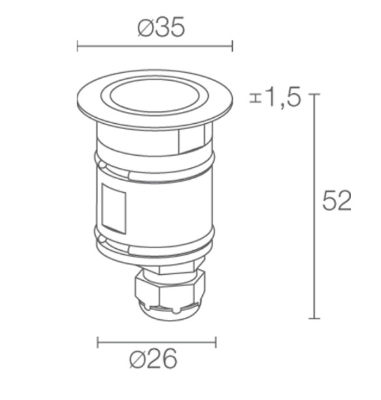

CB10125VAI-1

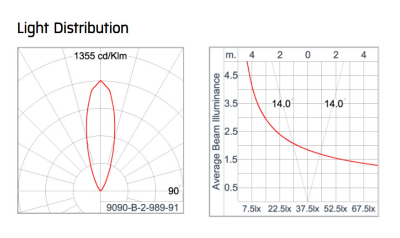

Recessed for outdoor applications (not suitable for use in immersion in swimming pools or fountains); walkover; recessed (ceiling, wall, floor); Power consumption: max 2W; Power supply: max 500mA; Lumen output at source: 195 lm (3000K, 500mA); Delivered lumen output: 127 lm (3000K, 500mA, 21°);

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

127LM

Finishing

STAINLESS STEEL

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

SPARK

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

PROLICHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

The rimless spot OIKO from the familiy OIKO consists of aluminum-die-cast. With 2 powder coated options 625 colour combinations can be achieved. Stated photometric values correspond to operation by 500 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 120-0194) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. ZERO LIGHT LEAKAGE technology guarantees trouble-free use in acoustic ceilings.
