COLORS

RECESSED LINEAR LIGHT
INDOOR LIGHTING

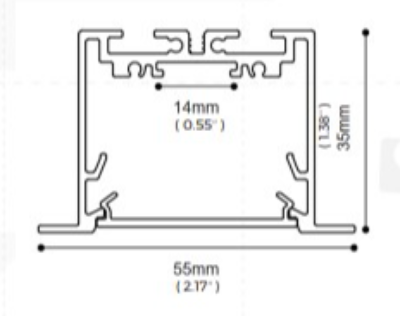

BE5535_RECESSED SYSTEM_LLS-BE5535FDXW

Material:AL6063-T5,spraying surface/anodizing/Coating:Silver anodized(RAL9006),Black(RAL9005),White(RAL9003)/Lighting direction: downward/Length:2500mm/0-2500mm customizable (Other lengths on request)/Application: Indoor/Installation:Recessed/IP grade:IP20/Certification:ROHS Reach/Warranty:5 years

Specification

Power
15W/m
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2015LM/m
Finishing
WHITE (With microprismatic cover)
IP Rating
IP20
Color Rendering
CRI 90
Driver
1-10V DRIVER

See more

LINEALIGHT
BOLLARD
OUTDOOR LIGHTING

Radial diffusion bollard & pole for outdoor application. The warm white LED light source with a asymmetric 360° light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a grey ral 7021 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65, IK10.

SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in mirror chrome, white and black color. Cut-out Ø150mm. For indoor use. IP20.

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
PLATEK
INGROUND UPLIGHT
OUTDOOR LIGHTING

Outdoor inground uplight body and front locking trim in AISI 316L stainless steel. IP68 Degree of protection with Full Dry system which avoids condensation inside the product. The Installation of the recessed housing in cast concrete with a 20-30 cm gravel soak away. Only an IP68 connection to the power supply can guarantee the same protection to the fixture. IK10
