IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

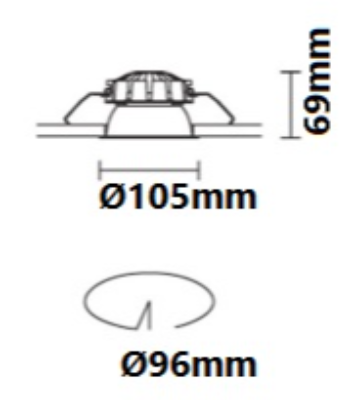

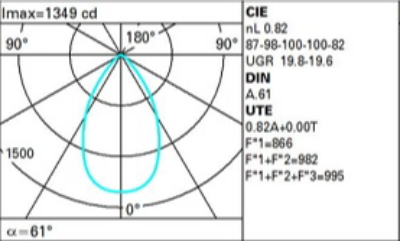

EASY SPACE_RL97.83

Round fixed luminaire designed to use LED lamps with C.o.B. technology. Version with rim for surface-mounting. Prismatic thermoplastic reflector complete with flux enhancer. Dissipater made of painted grey die-cast aluminium. Product complete with LED lamp in warm white colour tone (3500K). General lighting beam.

Specification

Power

13.2W

Color Temperature

3500K

Light Source Type

LED

Lumen Output

1394LM

Finishing

BLACK TRANSPARENT

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control.

SPARK

LINEAR DOWNLIGHT

INDOOR LIGHTING

Recessed slim linear downlight made of aluminium housing with white powder coated finish. Various beam angle 15°, 24°, 36° and 40°. Black finish available upon request.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 128 x 128 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
