LUCI

LED NEON TUBE

INDOOR LIGHTING

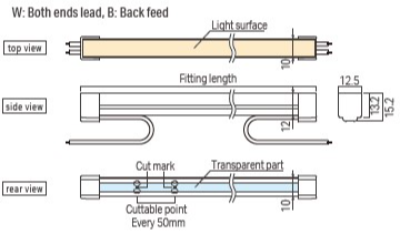

LFUMAY-I SHIN UQ FLEX α mini Indoor

Specification may be subject to change without announcement.

The optical data provided on the each product pages are for reference only; the data values are not guaranteed. Please use as reference materials for your planning

Specification

Power

10.8W PER M

Color Temperature

3000K

Light Source Type

LED

Lumen Output

635 LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

1-10V DRIVER

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.

SPARK

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mounted downlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

ILIGHT

CONTROL SYSTEM

The SI-2-D System integration node is a DINrail mounted RS232 converter for interfacing with third-party devices to and from iLight’s iCANnetTM network. The SI-2-D enables control of a wide range of equipment through the iLight user interfaces such as: audio systems, TVs, projectors, blinds, curtains, heating and HVAC systems, Security & Fire alarms and BMS.
