SPARK

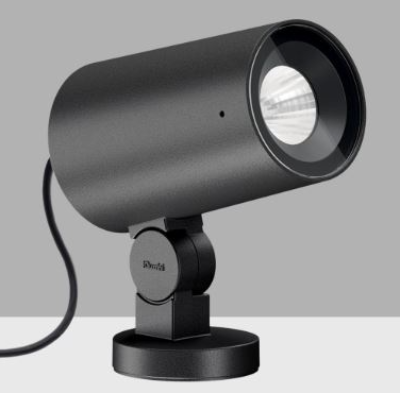

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, with partial frosting for uniform light diffraction and dark silk‑print, silicon gasket, closure with 4 stainless steel screws, mounting plate: 2 drilled holes Ø 7 mm, spacing 45 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 32° / 128°, luminous flux: 1521 lm, wattage: 28 W, delivered lumens 54 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,037 m², dimensions (L×H×W): 472 × 50 × 62 mm, weight 2.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

In-ground luminaire made of aluminium alloy body. Locking flange in AISI 316L stainless steel. A4 Stainless steel screws. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. Installation of the recessed housing is cast concrete with a 20-30cm gravel soakaway. IP67, IK10

Square recessed double head spotlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 2*13W; measurement 155mm x 85mm; ceiling cutout of 145mm x 75mm with a narrow mounting trim; rotation 355° and pivot max. 18°; CCT 3000K with a System Luminous Flux of 2*670lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54); impact resistance of the luminaire is in the class IK06; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

Updated with low wattage high lumen LED series

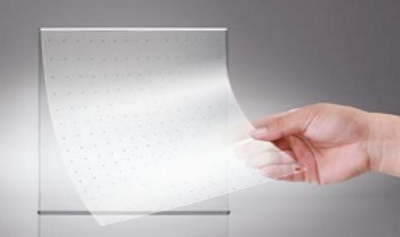

Side bend dot-free flexible strip

IP67, max custom length 2m for outdoor usage, connectable up to 7.5m (19.8W/m), 10m (Others)
